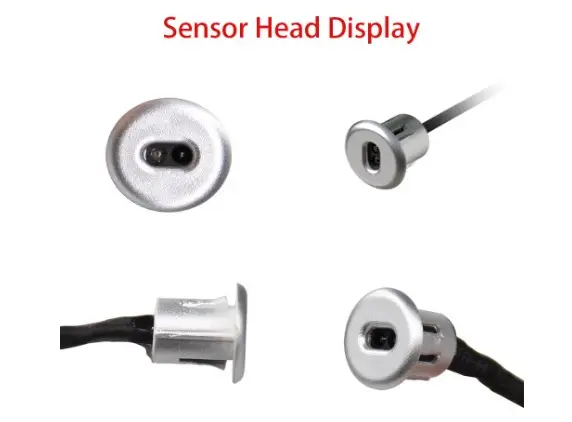

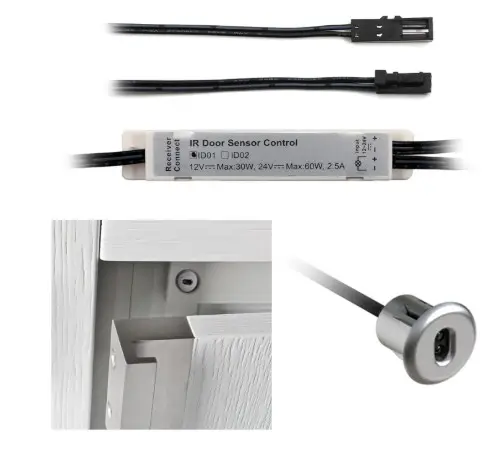

Single Door Motion Sensor

• High-sensitivity PIR motion sensor

• Instant activation of interior lighting upon door opening

• Powered by 12 V DC (external power supply required)

• Virtually zero standby power consumption

• Compact, chrome housing for a discreet, elegant look

• Compatible with low-voltage LED strips and fixtures

Technical Specifications

• Detection technology: PIR (passive infrared)

• Power supply: 12 V DC (external)

• Standby power consumption: < 0.1 W

• Maximum operating consumption: 2 W

• Detection angle: 120°

• Detection range: up to 1 m (3 ft)

• Response time: < 0.5 s

• Dimensions: 50 × 15 × 12 mm (L × W × H)

• Operating temperature: 0 °C to 40 °C
